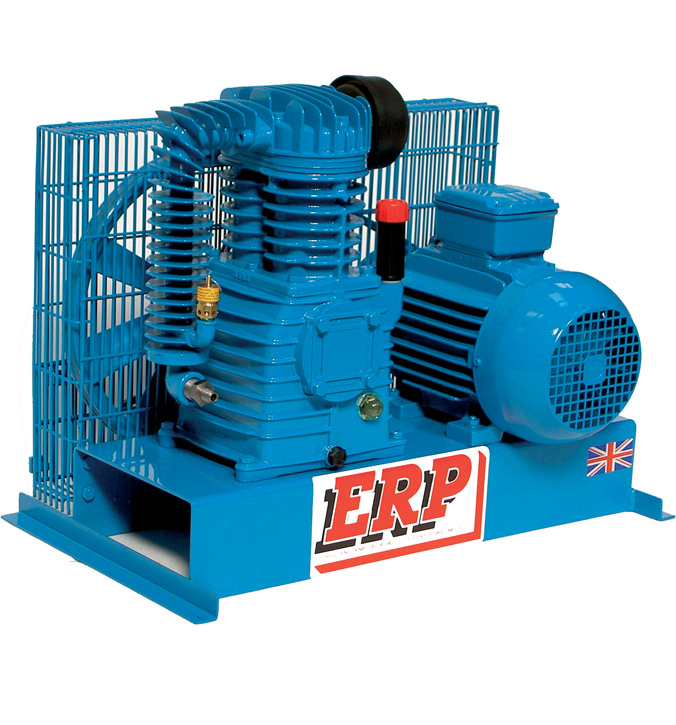

COMPRESSORS - Series Base

Single & Two Stage 400 V 3 Phase 50 HZ




Features

  • Industrial rated
  • High efficiency air pumps
  • Motors heavy duty IP55
  • Balanced flywheel / Multiblade fan for efficient cooling
  • Low vibration levels
  • Spares & service nationwide
  • Exports worldwide

Specifications

Model Displacement FAD Max Pressure
PSI-BAR
Motor

HP - KW
Phase Receiver
Litres
Dimensions KG
  CFM LTS CFM LTS   L W H
B10 9.0 255 5.4 153 150 - 10.0 2.0 - 1.5 3 N/A 560 400 510 25
B15 15.0 425 10.3 292 150 - 10.0 3.0 - 2.2 3 N/A 570 400 510 28
B18 16.0 453 12.0 339 150 - 10.0 3.0 - 2.2 3 N/A 600 450 530 31
B25 25.0 708 18.0 510 150 - 10.0 5.5 - 4.0 3 N/A 750 450 600 56
B26 26.0 736 20.0 566 150 - 10.0 5.5 - 4.0 3 N/A 750 450 740 65
B30 30.0 850 22.5 637 150 - 10.0 7.5 - 5.5 3 N/A 750 450 740 67
B50 42.0 1189 31.5 892 150 - 10.0 10.0 - 7.5 3 N/A 960 500 840 110
B70 60.0 1699 45.0 1274 150 - 10.0 15.0 - 11.0 3 N/A 1150 580 890 125
B100 80.0 2265 60.0 1699 150 - 10.0 20.0 - 15.0 3 N/A 1150 580 890 210
