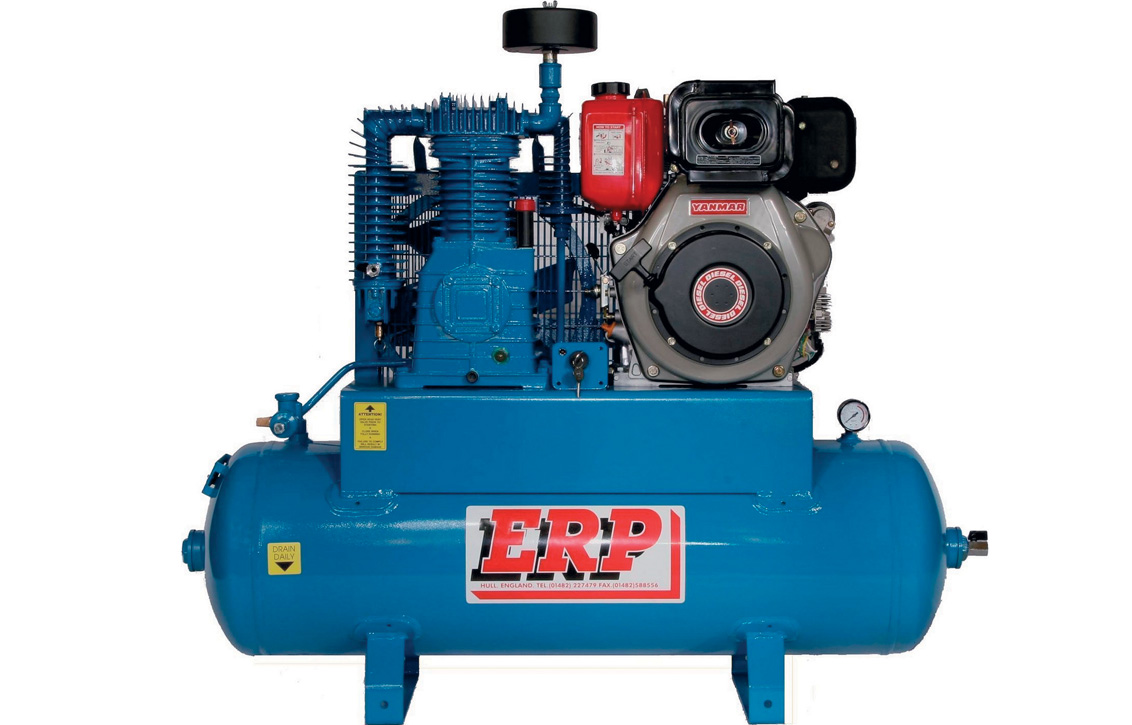

COMPRESSORS - DIESEL - YANMAR

STATIONARY AND RECOIL ELECTRIC START




Features

  • Industrial duty rated
  • Air receivers to 2009/105/CE
  • High efficiency air pumps
  • Low vibration levels
  • Deep finned cast iron cylinder
  • Recoil / electric start
  • Balanced flywheel / multiblade fan for efficient cooling
  • Minimum maintenance cost
  • Easy installation
  • Spares service
  • Exports worldwide

Specifications

Model Displacement FAD Max Pressure
PSI-BAR
Motor

HP
Phase Receiver
Litres
Dimensions KG
  CFM LTS CFM LTS   L W H
Stationary Recoil Start
AS20D-Y 20.0 566 13.4 379 150 - 10.0 4.7 N/A 150 1300 470 1154 95
Stationary Electric Start
AS20D-Y/ES 20.0 566 13.4 379 150 - 10.0 4.7 N/A 150 1300 470 1154 98
AS30D-Y/ES 30.0 850 22.5 637 174 - 12.0 10.0 N/A 150 1300 470 1190 111
