COMPRESSORS - INDUSTRIAL STATIONARY ELECTRIC

230V 1 PHASE 50HZ / 400V 3 PHASE 50HZ

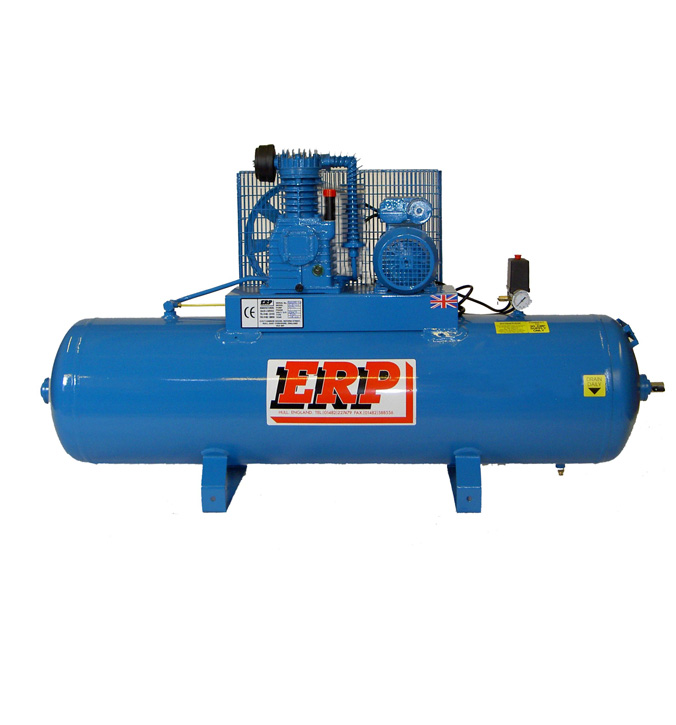

Single Stage – Two Cylinder
Models
A10 / 50  -   A18 / 200

Features

  • Industrial duty rated
  • Air receivers 2009/105/CE
  • High efficiency air pumps
  • Auto stop / start
  • Motors heavy duty IP55
  • Low vibration levels
  • Deep finned cast iron cylinder


Two Stage – Two Cylinder
Models
A25 / 200    - A50 / 270

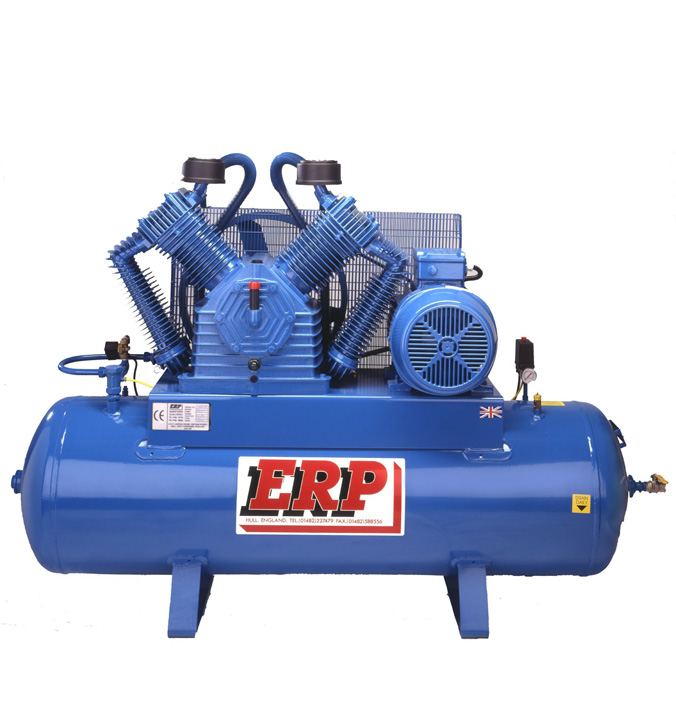

Two Stage – Four Cylinder
Models
A70/350 - A100 / 350

Features

  • Balanced flywheel / multi blade fan for efficient cooling
  • Minimum maintenance cost
  • Easy installation
  • Thermal protection to all motors
  • Star-delta starters fitted to 10 / 15 / 20 HP units
  • Spares & service nationwide
  • Exports worldwide

Specifications

INDUSTRIAL - 230V 50HZ 1 PHASE - 150 PSI / 10 BAR

Model Displacement FAD Stage Motor

HP - KW
NO
CYL
Receiver
Litres
Dimensions KG
  CFM LTS CFM LTS L W H
A10/50-1 9.0 255 5.4 153 1 2.0-1.5 2 50 1190 300 770 55
A10/100-1 9.0 255 5.4 153 1 2.0-1.5 2 100 1010 370 810 75
A15/100-1 15.0 425 10.3 292 1 3.0-2.2 2 100 1010 370 750 84
A15/150-1 15.0 425 10.3 292 1 3.0-2.2 2 150 1320 400 870 94
A18/150-1 16.0 453 12.0 340 1 3.0-2.2 2 150 1320 400 880 97
A18/200-1 16.0 453 12.0 340 1 3.0-2.2 2 200 1460 420 920 125

INDUSTRIAL - 400V 50 HZ 3 PHASE - 150 PSI / 10 BAR

Model Displacement FAD Stage Motor

HP - KW
NO
CYL
Receiver
Litres
Dimensions KG
  CFM LTS CFM LTS L W H
A10/50-3 9.0 255 5.4 153 1 2.0-1.5 2 50 1090 300 770 55
A10/100-3 9.0 255 5.4 153 1 2.0-1.5 2 100 1010 370 750 75
A15/100-3 15.0 425 10.3 292 1 3.0-2.2 2 100 1010 370 750 84
A15/150-3 15.0 425 10.3 292 1 3.0-2.2 2 150 1320 400 870 94
A18/150-3 16.0 453 12.0 340 1 3.0-2.2 2 150 1320 400 880 97
A18/200-3 16.0 453 12.0 340 1 3.0-2.2 2 200 1460 420 920 125
A25/200-3 25.0 708 18.0 510 2 5.5-4.0 2 200 1460 470 980 163
A26/200-3 26.0 736 20.0 566 2 5.5-4.0 2 200 1460 470 1100 174
A30/270-3 30.0 850 22.5 637 2 7.5-5.5 2 270 1530 520 1180 213
A50/270-3 42.0 1189 31.5 892 2 10.0-7.5 2 270 1530 510 1280 256
A70/350-3 60.0 1699 45.0 1274 2 15.0-11.0 4 350 1978 510 1270 354
A100/350-3 80.0 2265 60.0 1699 2 20.0-15.0 4 350 1978 570 1340 412

INDUSTRIAL - 400V 50 HZ 3 PHASE - 200 PSI / 14 BAR

Model Displacement FAD Stage Motor

HP - KW
NO
CYL
Receiver
Litres
Dimensions KG
  CFM LTS CFM LTS L W H
A25/270HP 25.0 708 18.0 510 2 5.5-4.0 2 270 1530 520 980 170
A30/270HP 30.0 850 22.5 637 2 7.5-5.5 2 270 1530 520 1180 213
A50/270HP 42.0 1189 31.5 892 2 10.0-7.5 2 270 1530 520 1280 256
