COMPRESSORS - PETROL-HONDA Stationary Electric & Recoil start

MOBILE - STATIONARY - CARRY FRAME



Features

  • Industrial rated
  • Air receivers to 2009/105/CE
  • High efficiency air pumps

Models

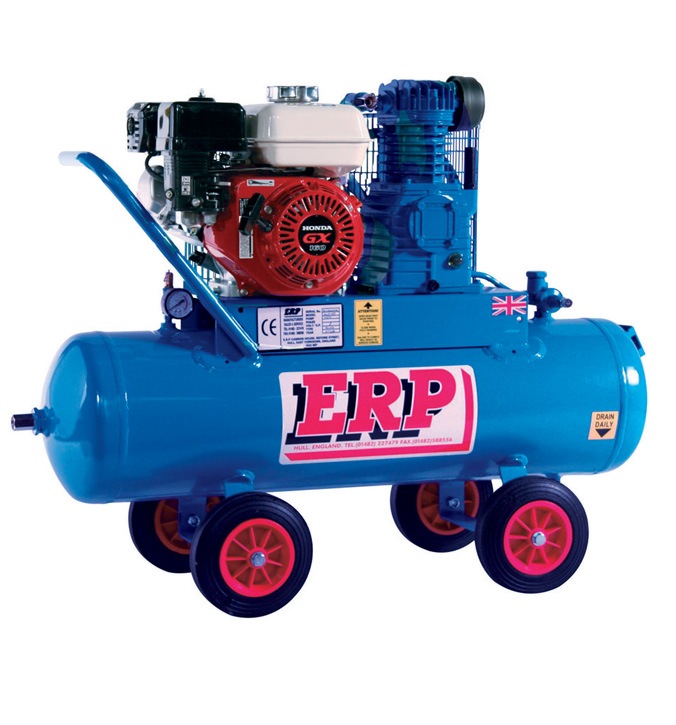

ACP15P




Models
AS20P     AS25P-ES
AS25P     AS30P-ES
AS30P     AS40P-ES
AS40P


Models

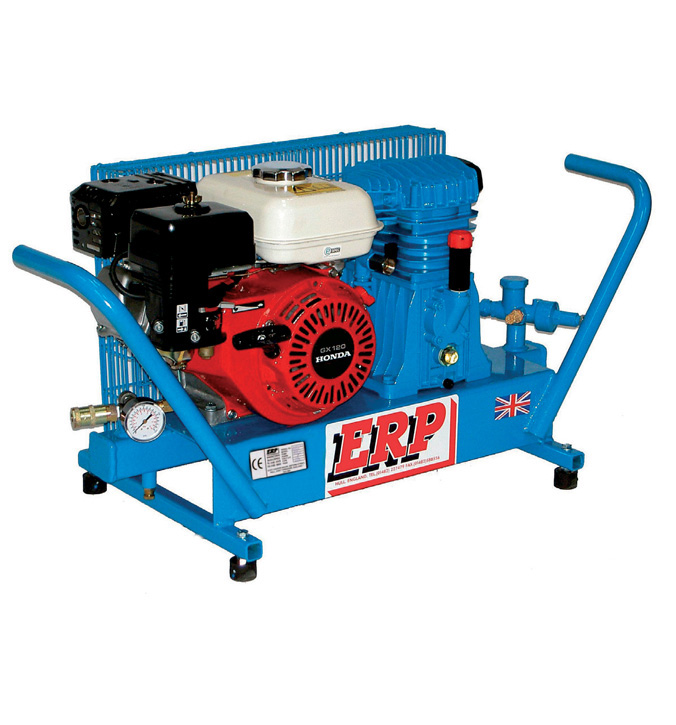

 A15/CF


Features

  • Conforms to EU noise regulations
  • Low vibration levels
  • Genie unloader control
  • Totally enclosed belt guard for utmost safety
  • Spares & service nationwide
  • Exports worldwide

Specifications

Model Displacement FAD Max Pressure
PSI-BAR
Motor

HP
Phase Receiver
Litres
Dimensions KG
Mobile
CFM LTS CFM LTS   L W H
ACP15P 15.0 425 10.3 292 150 - 10.0 5.5 N/A 50 1050 500 900 93
Stationary Recoil Start
AS20P 20.0 566 13.4 379 150 - 10.0 5.0 N/A 150 1300 410 820 84
AS25P 25.0 708 18.0 510 174 - 12.0 8.0 N/A 150 1300 410 970 111
AS30P 30.0 850 22.5 637 174 - 12.0 11.0 N/A 150 1300 410 1030 128
AS40P 38.0 1076 28.5 807 174 - 12.0 13.0 N/A 150 1300 410 1030 128
Stationary Electric Start
AS25P-ES 25.0 708 18.0 510 174 - 12.0 8.0 N/A 150 1300 410 1030 112
AS30P-ES 30.0 850 22.5 637 174 - 12.0 11.0 N/A 150 1300 410 1030 128
AS40P-ES 38.0 1076 28.5 807 174 - 12.0 13.0 N/A 150 1300 410 1030 135
Carry Frame Recoil Start
A15/CF 15.0 425 10.3 292 150 - 10.0 5.5 N/A 3 750 330 430 39
