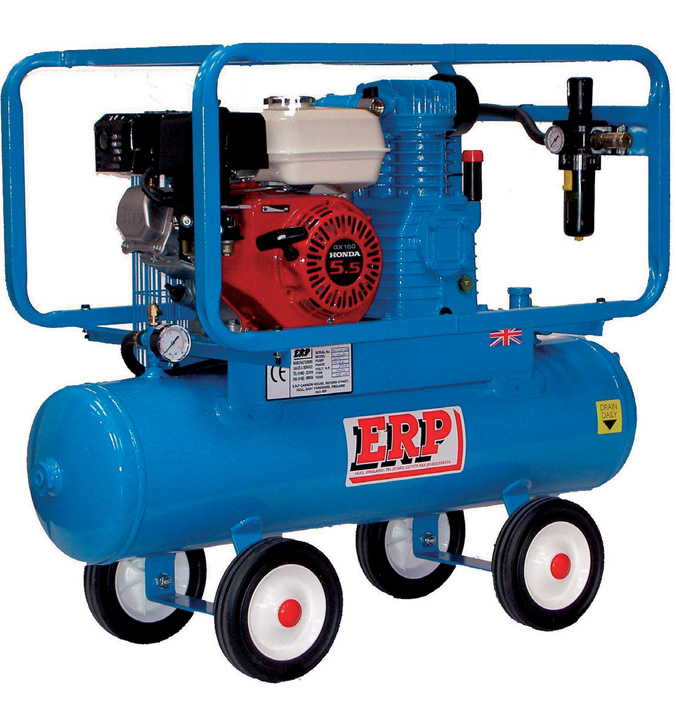

COMPRESSORS - Series Site Master

Petrol Electric (110 V) 1 PHASE 50 HZ

Models
SM15E/110


Features

  • Industrial duty rated
  • Air receivers to 2009/105/CE
  • High efficiency air pumps
  • Auto stop / start
  • Motors heavy duty IP55
  • Low vibration levels
  • Deep finned cast iron cylinder
  • Thermal protection to all motors
  • Spares & service nationwide
  • Exports worldwide


Features

  • Industrial duty rated
  • Air receivers to 2009/105/CE
  • High efficiency air pumps
  • Auto stop / start
  • Motors heavy duty IP55
  • Low vibration levels
  • Deep finned cast iron cylinder
  • Thermal protection to all motors
  • Spares & service nationwide
  • Exports worldwide
  Models
SM15P

Specifications Site Master - Petrol Electric (110 V) 50 HZ

Model Displacement FAD Max Pressure
PSI-BAR
Motor

HP - KW
Phase Receiver
Litres
Dimensions KG
  CFM LTS CFM LTS   L W H
SM15E/110 15.0 425 10.3 292 150 - 10.0 3.0 - 2.2 1 50 1050 500 900 85
SM15P 15.0 425 10.3 292 150 - 10.0 5.5 - N/A 50 1050 500 900 95
