COMPRESSOR COMPONENTS - V Belt Pulleys

COMPRESSOR COMPONENTS - V Belt Pulleys - Alloy - Cast Iron

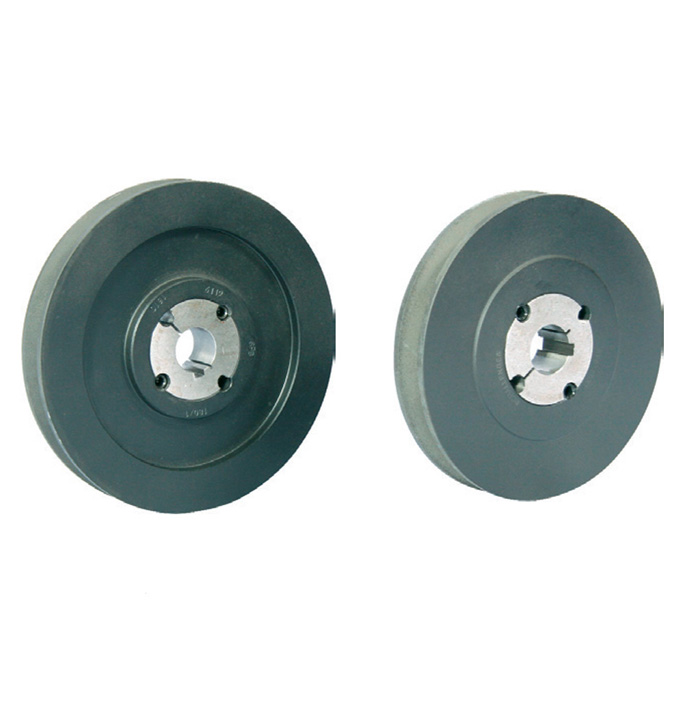

  V Belt Pulleys - Material Cast Iron
Code MM NO Grooves Bore
  Dia Groove Section IMP
PU1008 140 1 A x B 1”
PU1009 160 1 A x B 1”
PU1010 180 1 A x B 1”

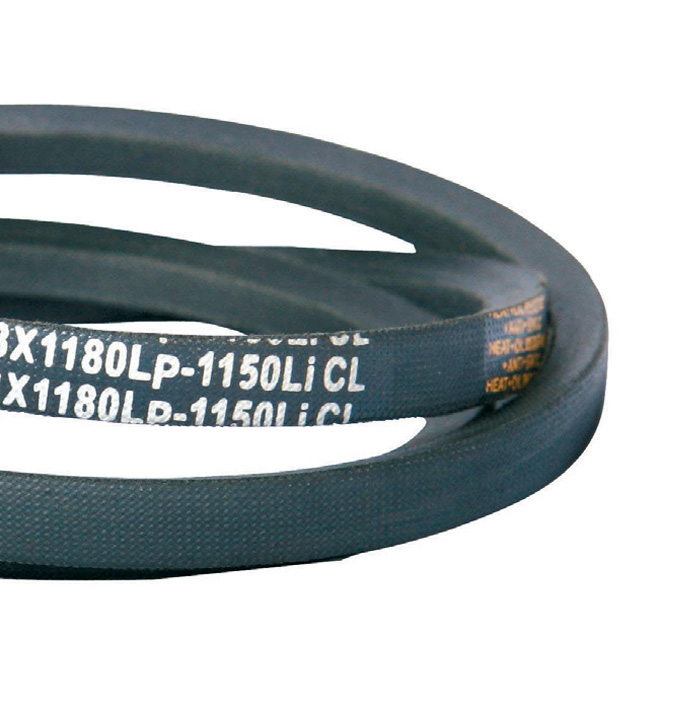

V Belts
A&B Sections
Code Size
VB1001 A42 - 1100
VB1002 A45 - 1180
VB1003 A46 - 1200
VB1004 A47 - 1230
VB1005 A54 - 1410
VB1006 A58 - 1510
VB1007 B59 - 1540
VB1008 B63 - 1640
VB1009 B82 - 2130
VB10010 B84 - 2180
VB10011 B86 – 2230

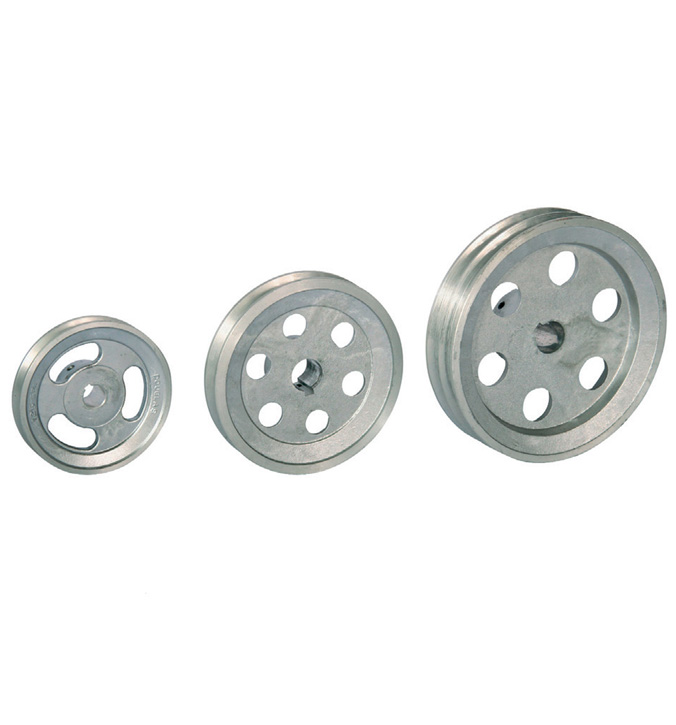

  V Belt Pulleys - Material Alloy
Code MM NO Grooves Bore
  Dia Groove Section MM
PU1001 106 1 A 19
PU1002 125 1 A 19 + 24
PU1003 140 1 A 19
PU1004 160 1 A 28
PU1005 140 1 B 28
PU1006 160 1 B 28
PU1007 200 2 B 38
